What is a UY connector?
A UY connector is a yellow gel-filled IDC splice connector used to join two supported solid copper telephone wires without stripping the insulation. The IDC contact cuts through the insulation during crimping and makes electrical contact with the conductor, while the gel helps protect the splice from humidity and condensation. The UY connector is the compact model in the yellow UY family, commonly used for copper telephone cable pair splicing, cable fault repair, and high pair-count cable work where a smaller splice bundle is preferred.
Specifications
UY connector technical data
These are the confirmed technical details for Mintel UY connectors used in supported copper telephone wire splicing.
| Parameter | Value |
|---|---|
| Connector type | Gel-filled IDC splice connector |
| Wire count | 2-wire straight splice |
| Wire range | 0.4-0.7 mm / 26-22 AWG solid copper wire |
| Maximum insulation O.D. | 1.52 mm |
| Body material | PC plastic |
| Contact material | Tin-plated phosphor-bronze IDC contact |
| Gel-filled | Yes |
| Color | Yellow |
| Cat.5 compatibility | Suitable for Cat.5 cable requirements when wire size and installation conditions match |
| Wire preparation | No stripping required for supported wires |
| Typical use | Copper telephone wire repair, compact pair splicing, high pair-count cable work |
| Selection note | For wire sizes up to 0.9 mm, review the UY2 connector instead. |
Installation
UY connector installation steps
UY connectors are installed by inserting two supported solid copper wires into the connector ports and crimping the yellow cap with a compatible crimping tool or suitable parallel-jaw pliers. No wire stripping, soldering, heat shrink, or tape is required for supported wire sizes.
- Prepare the wire ends: cut the solid copper wires with clean, square ends. Do not strip the insulation.
- Insert the wires: push both wires fully into the connector ports until they bottom out.
- Crimp the connector: press the yellow cap evenly until the connector is fully seated.
- Check the splice: confirm that the connector is closed and the wires are held firmly.
- Tool note: compatible crimping tools can be discussed for bulk or project orders.
Model comparison

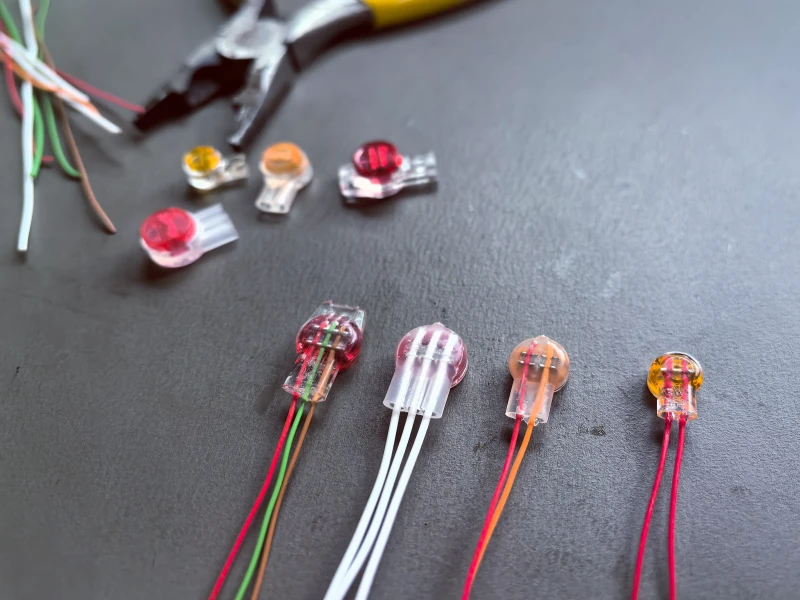

UY compared with UY2 and UR connectors
Buyers often compare UY, UY2, and UR connectors because all three are gel-filled IDC splice connectors used in copper telecom wire work. The correct choice depends on wire count, wire size, maximum insulation diameter, and existing model specification.
- Choose UY: compact yellow 2-wire splice for 0.4-0.7 mm wire.
- Choose UY2: larger yellow format when wire size or insulation diameter requires it.
- Choose UR: red connector for two or three wires, or when a red connector is specified.
| Parameter | UY | UY2 | UR |
|---|---|---|---|
| Color | Yellow | Yellow | Red |
| Wire count | 2-wire | 2-wire | 2-wire or 3-wire |
| Wire range | 0.4-0.7 mm / 26-22 AWG | 0.4-0.9 mm / 26-19 AWG | 0.4-0.9 mm / 26-19 AWG |
| Max insulation O.D. | 1.52 mm | 2.08 mm | 1.52 mm |
| Blade/contact | Single IDC contact | Single IDC contact | Dual IDC contact |
| Typical use | Compact pair splicing, smaller wire range | Enhanced yellow 2-wire splice, larger wire range | 2-wire or 3-wire repair and tap splice work |
| Page | This page | /uy2-connector/ | /ur-connector/ |
Applications
Where UY connectors are used
Mintel UY connectors are used in copper telecom and qualified low-voltage wiring applications where a compact, gel-filled 2-wire IDC splice is required.
- Copper telephone cable pair splicing
- Cable fault repair
- High pair-count cable work where splice bundle size matters
- Outdoor or humid splice points inside suitable closures
- Premises wiring and telecom field maintenance
- Selected low-voltage alarm or sensor wiring when wire size matches the UY specification
Related products
Related Mintel connector pages
Jelly Crimp Connectors Category page covering UY, UY2, UR, UR2, and UB2A gel-filled IDC splice connectors.
UY2 Connector Enhanced yellow 2-wire IDC splice connector for 0.4-0.9 mm wire and larger insulation diameter.
UR Connector Red gel-filled IDC splice connector for 2-wire or 3-wire repair and tap splice requirements.
Telephone Cable Connectors Inline, drop wire, self-stripping tap splice, modular, and jelly crimp connectors for copper telecom cable work. Factory supply
Factory-direct UY connector supply
Mintel was founded in 2012, building on family copper telecom connector manufacturing know-how since 1986. The company manufactures gel-filled IDC splice connectors and related copper wire connector products from a single factory source for telecom, distributor, OEM, and selected low-voltage buyers.
- Factory-direct communication for model selection and quotation
- Bulk supply and distributor order support
- Neutral packaging for standard orders
- OEM packaging support by project discussion
- Model comparison support across UY, UY2, UR, UR2, and UB2A
- RoHS and REACH documentation can be arranged for qualified orders
FAQ
Buyer questions
What is a UY connector?
A UY connector is a yellow gel-filled 2-wire IDC splice connector used to join two supported solid copper telephone wires without stripping the insulation.
What wire sizes does the UY connector support?
The UY connector supports 0.4-0.7 mm / 26-22 AWG solid copper wire, with a maximum insulation O.D. of 1.52 mm. For wire sizes up to 0.9 mm, review the UY2 connector instead.
Is the UY connector gel-filled?
Yes. The UY connector is gel-filled to help reduce moisture exposure around the splice area in suitable telecom field environments.
Is the UY connector waterproof?
The UY connector is moisture-resistant, not designed for full submersion. Final protection depends on wire fit, crimping quality, and the surrounding closure or cable system.

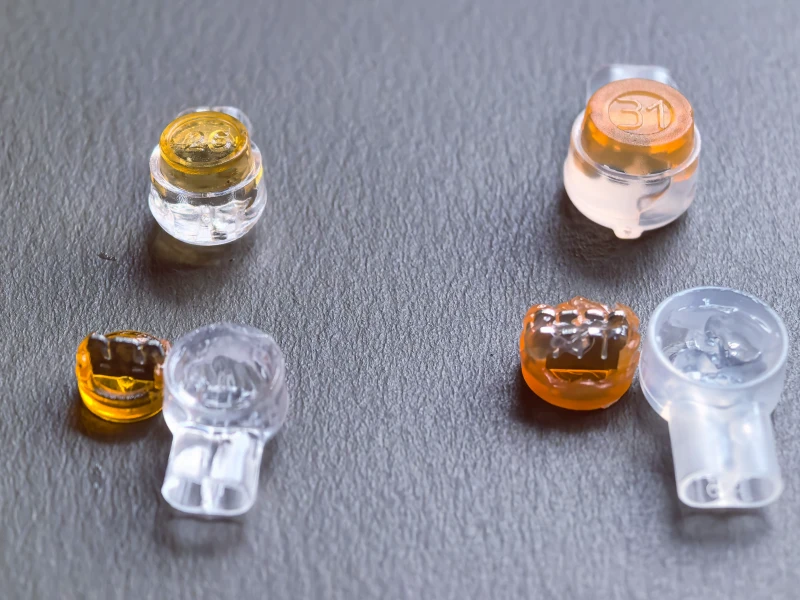

What is the difference between UY and UY2 connectors?
UY is the compact yellow 2-wire splice for 0.4-0.7 mm wire and maximum insulation O.D. of 1.52 mm. UY2 is the larger yellow 2-wire format for 0.4-0.9 mm wire and maximum insulation O.D. of 2.08 mm.
What is the difference between UY and UR connectors?
UY is a yellow 2-wire straight splice. UR is a red connector for 2-wire or 3-wire repair and tap splice requirements.
How do you install a UY connector?
Insert two supported solid copper wires fully into the connector body, then crimp the yellow cap with a compatible tool or suitable pliers until the connector is fully seated. No stripping or soldering is required.
Can Mintel supply UY connectors in bulk?
Yes. Mintel supports factory-direct bulk supply, distributor orders, neutral packaging, and OEM packaging discussion for qualified B2B buyers.
Can I include UY with other connector models in one inquiry?
Yes. Buyers can include UY, UY2, UR, UR2, and UB2A in one inquiry. Share model names, quantities, wire specifications, packaging needs, destination country, and documentation requirements.
