What is a UR2 connector?

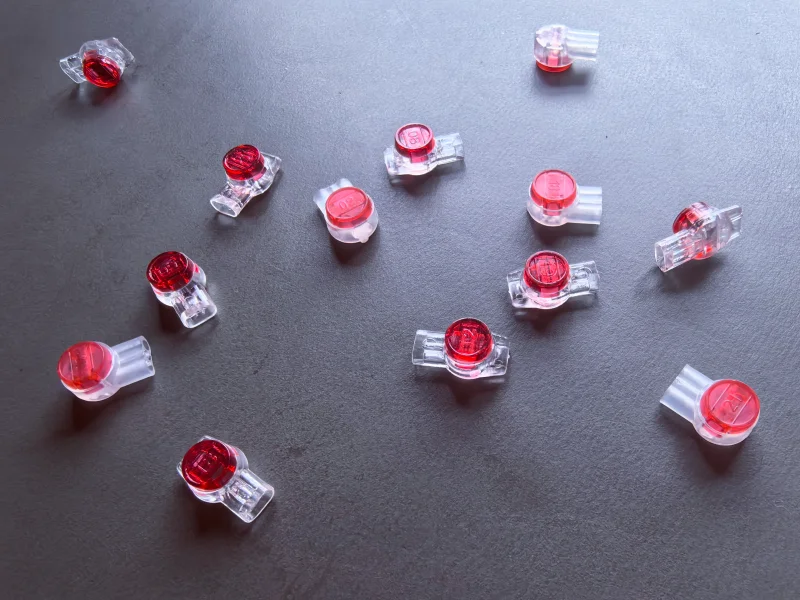

A UR2 connector is a red gel-filled IDC splice connector used to join two or three supported solid copper telephone wires without stripping the insulation. During crimping, the IDC contact cuts through the wire insulation and makes electrical contact with the conductor, while the gel helps reduce moisture exposure around the splice area. UR2 belongs to the same red connector family as UR. Buyers usually choose UR2 when the application requires a red 2-wire or 3-wire connector and the wire insulation outside diameter is larger than the compact UR format can support.
Specifications
UR2 connector technical data
These are the confirmed technical details for Mintel UR2 connectors used in supported copper telephone wire repair, tap splice work, and larger insulation diameter requirements.
| Parameter | Value |
|---|---|
| Connector type | Gel-filled IDC splice connector |
| Wire count | 2-wire or 3-wire splice |
| Wire range | 0.4-0.9 mm / 26-19 AWG solid copper wire |
| Maximum insulation O.D. | 2.08 mm |
| Body material | PP plastic |
| Contact material | Tin-plated phosphor-bronze IDC contact |
| Contact format | Dual IDC contact |
| Gel-filled | Yes |
| Color | Red |
| Cat.5 compatibility | Suitable for Cat.5 cable requirements when wire size and installation conditions match |
| Wire preparation | No stripping required for supported wires |
| Typical use | Copper telephone wire repair, 2-wire or 3-wire splice work, tap splice requirements, larger insulation diameter requirements |
| Selection note | For red 2-wire or 3-wire splice requirements with maximum insulation O.D. up to 1.52 mm, review the UR connector. For yellow 2-wire splice requirements in the same 0.4-0.9 mm wire range and 2.08 mm insulation O.D. range, review the UY2 connector. |
Installation
UR2 connector installation steps
UR2 connectors are installed by inserting two or three supported solid copper wires into the connector ports and crimping the red cap with a compatible crimping tool or suitable parallel-jaw pliers. No wire stripping, soldering, heat shrink, or tape is required for supported wire sizes.
- Prepare the wire ends: cut the solid copper wires with clean, square ends. Do not strip the insulation.
- Insert the wires: push each wire fully into the UR2 connector ports until they bottom out.
- Confirm wire count: use UR2 for supported 2-wire or 3-wire splice requirements.
- Crimp the connector: press the red cap evenly until the connector is fully seated.
- Check the splice: confirm that the cap is closed and all wires are held firmly.
- Tool note: compatible crimping tools can be discussed for bulk or project orders.
Model comparison
UR2 compared with UR and UY2 connectors
Buyers often compare UR2 with UR and UY2 because the three models cover the most common choice points around connector color, wire count, and maximum insulation diameter. UR2 and UR are both red connectors for 2-wire or 3-wire splice requirements, but UR2 supports a larger maximum insulation outside diameter. UR2 and UY2 share the same 0.4-0.9 mm wire range and 2.08 mm maximum insulation O.D., but UY2 is yellow and supports 2-wire splice work only.
- Choose UR2: red 2-wire or 3-wire splice where the maximum insulation O.D. requirement is up to 2.08 mm.
- Choose UR: red 2-wire or 3-wire splice where the maximum insulation O.D. requirement is up to 1.52 mm.
- Choose UY2: yellow 2-wire splice when the project requires a yellow connector format.
| Parameter | UR2 | UR | UY2 |
|---|---|---|---|
| Color | Red | Red | Yellow |
| Wire count | 2-wire or 3-wire | 2-wire or 3-wire | 2-wire |
| Wire range | 0.4-0.9 mm / 26-19 AWG | 0.4-0.9 mm / 26-19 AWG | 0.4-0.9 mm / 26-19 AWG |
| Max insulation O.D. | 2.08 mm | 1.52 mm | 2.08 mm |
| Blade/contact | Dual IDC contact | Dual IDC contact | Single IDC contact |
| Typical use | Red connector for 2-wire or 3-wire requirements with larger insulation diameter | Red connector for repair and tap splice work with smaller insulation diameter | Yellow 2-wire splice for larger wire or insulation diameter requirements |
| Page | This page | /ur-connector/ | /uy2-connector/ |
Selection guide
When to choose UR2
Choose UR2 when the project requires a red gel-filled IDC connector for supported 2-wire or 3-wire copper telephone wire splice work and the insulation outside diameter requirement is larger than the compact UR format. UR2 is commonly selected when a buyer specification, drawing, inventory code, or maintenance system calls for the UR2 red connector format.
- The wire size is within 0.4-0.9 mm / 26-19 AWG.
- The maximum insulation outside diameter requirement is up to 2.08 mm.
- The splice requires two or three supported solid copper wires.
- The buyer specification, drawing, or inventory code calls for UR2.
- The project requires a red connector for field repair or tap splice work with larger insulation diameter.
- UR2 is already the model used in the existing telecom maintenance system.
Applications
Where UR2 connectors are used
Mintel UR2 connectors are used in copper telecom and qualified low-voltage wiring applications where a red gel-filled IDC splice is required for supported wire sizes and larger insulation diameter requirements.
- Copper telephone cable repair
- 2-wire or 3-wire splice work
- Tap splice and branch splice applications
- Red connector requirements with insulation O.D. up to 2.08 mm
- Field maintenance in copper telecom networks
- Outdoor or humid splice points inside suitable closures
- Distributor inventory for UR2-format connector demand
- Selected low-voltage alarm or sensor wiring when wire size and application match the UR2 specification
Related products
Related Mintel connector pages
UR Connector Red gel-filled IDC splice connector for 2-wire or 3-wire requirements with maximum insulation O.D. up to 1.52 mm.
UY2 Connector Yellow gel-filled 2-wire IDC splice connector for 0.4-0.9 mm wire and maximum insulation O.D. up to 2.08 mm.
Jelly Crimp Connectors Category page covering UY, UY2, UR, UR2, and UB2A gel-filled IDC splice connectors.
Telephone Cable Connectors Inline, drop wire, self-stripping tap splice, modular, and jelly crimp connectors for copper telecom cable work. Factory supply
Factory-direct UR2 connector supply
Mintel was founded in 2012, building on family copper telecom connector manufacturing know-how since 1986. The company manufactures gel-filled IDC splice connectors and related copper wire connector products from a single factory source for telecom, distributor, OEM, and selected low-voltage buyers.
- Factory-direct communication for model selection and quotation
- Bulk supply and distributor order support
- Neutral packaging for standard orders
- OEM packaging support by project discussion
- Model comparison support across UY, UY2, UR, UR2, and UB2A
- RoHS and REACH documentation can be arranged for qualified orders
FAQ
Buyer questions
What is a UR2 connector?
A UR2 connector is a red gel-filled IDC splice connector used to join two or three supported solid copper telephone wires without stripping the insulation, especially where a larger insulation outside diameter is required.
What wire sizes does the UR2 connector support?
The UR2 connector supports 0.4-0.9 mm / 26-19 AWG solid copper wire, with a maximum insulation outside diameter of 2.08 mm.
Is the UR2 connector gel-filled?
Yes. The UR2 connector is gel-filled to help reduce moisture exposure around the splice area in suitable telecom field environments.
Is the UR2 connector waterproof?
The UR2 connector is moisture-resistant, not designed for full submersion. Final protection depends on wire fit, crimping quality, and the surrounding closure or cable system.
Can UR2 connect three wires?
Yes. UR2 is used for supported 2-wire or 3-wire splice requirements. Buyers should confirm wire size, insulation outside diameter, and installation conditions before ordering.
What is the difference between UR and UR2 connectors?
UR and UR2 are both red gel-filled IDC splice connectors for 2-wire or 3-wire requirements. UR supports maximum insulation O.D. up to 1.52 mm, while UR2 supports maximum insulation O.D. up to 2.08 mm.
What is the difference between UR2 and UY2 connectors?
UR2 is a red connector for 2-wire or 3-wire repair and tap splice work. UY2 is a yellow 2-wire connector for applications that require a yellow connector format and maximum insulation O.D. up to 2.08 mm.
Is UR2 also a red button connector?
Yes. UR2 can also be described as a red button connector because of its red button-style cap. In quotation and technical discussion, buyers should specify UR2 when the larger red connector format is required.
How do you install a UR2 connector?
Insert two or three supported solid copper wires fully into the connector body, then crimp the red cap with a compatible tool or suitable pliers until the connector is fully seated. No stripping or soldering is required.
Can Mintel supply UR2 connectors in bulk?
Yes. Mintel supports factory-direct bulk supply, distributor orders, neutral packaging, and OEM packaging discussion for qualified B2B buyers.
Can I include UR2 with other connector models in one inquiry?
Yes. Buyers can include UY, UY2, UR, UR2, UB2A, and related connector requirements in one inquiry. Share model names, quantities, wire specifications, packaging needs, destination country, and documentation requirements.
