What is the 314 low voltage splice connector?

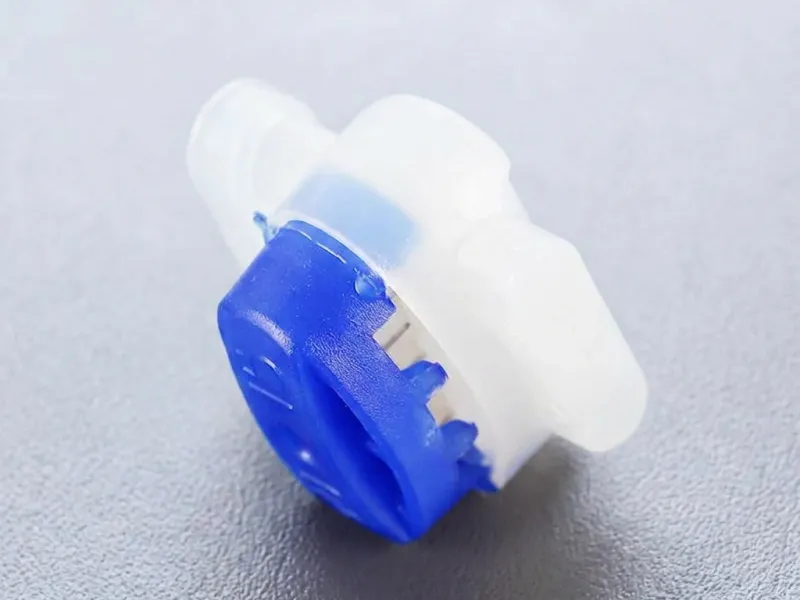

The 314 connector is a self-stripping IDC pigtail connector used for low voltage wire splicing. Compatible unstripped solid copper wires are inserted into the connector body, and the cap is pressed down to drive the U-contact through the insulation and into the conductors. The three-dimensional body has a blue cap and translucent-white housing, and the connector is selected for low voltage electrical wiring, legacy telecom repair, alarm and sensor wiring, lighting, and thermostat wiring when wire size and installation conditions match.
- 314-type low voltage IDC splice connector
- Self-stripping connection for supported solid copper wires
- For 2 or 3 wire pigtail splicing
- Silicone grease filled for moisture resistance
- No stripping, twisting, soldering, or heat shrink required
- Bulk supply for B2B and distributor orders
Specifications
314 connector technical data
These are the confirmed technical details for Mintel 314 low voltage IDC splice connectors. Application suitability should always be confirmed by wire size, voltage, environment, moisture exposure, and installation conditions before ordering. For quotation, buyers should share wire diameter, wire type, insulation diameter, voltage, environment, moisture exposure, and installation method.
| Parameter | 314 connector value |
|---|---|
| Product model | 314 |
| Connector type | Low voltage IDC splice connector / pigtail connector |
| Wire count | 2 or 3 wires |
| Wire type | Solid copper only |
| Wire range | 0.6-1.25 mm diameter / 22-16 AWG |
| Max insulation O.D. | 3.08 mm / 0.12" |
| Housing | PA66 plastic shell + PA outer cap |
| Contact | Bronze tin-plated U-contact |
| Sealing | Silicone grease filled for moisture resistance |
| Self-stripping | Yes |
| Body style | Three-dimensional body, not flat button-style |
| Packaging | Loose / bulk only |
| Voltage / current | Not rated on this page; suitability must be confirmed by application |
Connection Method
How the self-stripping IDC U-contact works

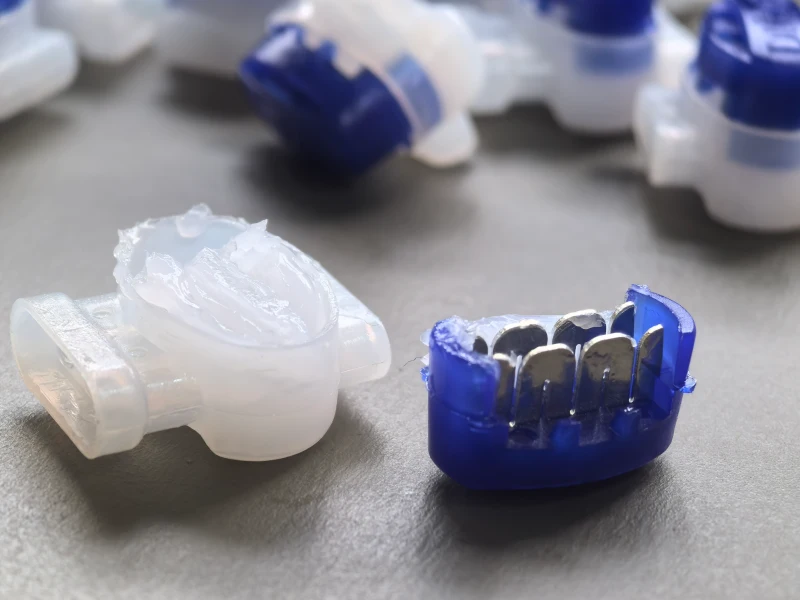

The 314 connector uses a bronze tin-plated U-contact inside the connector. When the cap is pressed down, the U-contact displaces the insulation and grips the solid copper conductors. This allows the connector to complete the splice without pre-stripping the wire. The connector is silicone grease filled for moisture resistance. The sealing grease helps protect the connection area in suitable low voltage installations. Mintel describes the 314 connector separately from gel-filled jelly crimp connectors such as UY, UY2, UR, and UR2.
- U-contact cuts through insulation during pressing
- Designed for supported solid copper wires
- Silicone grease supports moisture resistance
- No wire stripping or twisting is required
- Separate from gel-filled UY/UR-style jelly crimp connectors
Installation
314 connector installation steps
314 connectors are installed by inserting compatible unstripped wires into the connector and pressing the cap until the connection is fully seated. Installation should be performed according to the buyer's application requirements and applicable electrical practice.
- Turn off power before installation.
- Confirm the wires are solid copper and within 0.6-1.25 mm diameter / 22-16 AWG.
- Confirm the insulation outside diameter does not exceed 3.08 mm / 0.12".
- Insert 2 or 3 unstripped wire ends fully into the connector body.
- Press the cap evenly until it is fully seated.
- Check that the wires are held securely and the connector is properly closed.
Applications
Where 314 low voltage splice connectors are used
The 314 connector is used in selected low voltage wire splicing applications when the wire size, voltage, environment, moisture exposure, and installation conditions match. It is especially useful when installers need a quick IDC splice without stripping or twisting the wire.
- Low voltage electrical wiring
- Legacy telecom wire repair
- Alarm and sensor wiring
- Low voltage lighting connections
- Thermostat wiring
- Control wiring in qualified low voltage systems
- Maintenance and repair work where a 2-wire or 3-wire pigtail splice is required
Selection Guide
314 connector selection notes and limits
The 314 connector is supplied as one confirmed model and size. Buyers should review the wire material, wire diameter, insulation diameter, moisture exposure, packaging format, and application conditions before quotation.
| Selection point | Confirm before ordering |
|---|---|
| Wire material | Solid copper only |
| Wire range | 0.6-1.25 mm diameter / 22-16 AWG |
| Wire count | 2 or 3 wires |
| Insulation diameter | Max 3.08 mm / 0.12" |
| Environment | Moisture exposure and enclosure condition |
| Voltage / current | Confirm by application; no rated value is published on this page |
| Packaging | Loose / bulk only |
| Custom requirement | Sample, drawing, target wire range, application, and expected order quantity |
Comparison
314 connector vs jelly crimp connectors
314 connectors and jelly crimp connectors are both IDC splice products, but they are used for different wiring contexts. The 314 connector is a low voltage pigtail splice connector with a three-dimensional body and silicone grease sealing. Jelly crimp connectors such as UY, UY2, UR, and UR2 are compact telecom splice connectors with gel filling and flat button-style caps.
| Factor | 314 low voltage splice connector | Jelly crimp connectors |
|---|---|---|
| Typical models | 314 | UY, UY2, UR, UR2, UB2A |
| Body style | Three-dimensional pigtail connector | Flat button-style telecom connector |
| Wire type | Solid copper only | Solid copper telecom wire |
| Wire count | 2 or 3 wires | Depends on model |
| Sealing | Silicone grease filled | Gel-filled |
| Main use | Low voltage pigtail splicing | Copper telecom repair and splicing |
| Packaging | Loose / bulk only | Depends on model and order |
Packaging
Bulk packaging for 314 connector supply
The 314 connector is supplied in loose / bulk packaging. It is not offered in reel or strip packaging. Bulk packaging is suitable for distributor stock, maintenance orders, and B2B project supply.
- Loose / bulk packaging only
- Suitable for distributor and project orders
- Neutral packaging can be discussed for standard orders
- OEM or private label packaging can be discussed for qualified orders
- Packaging details should be confirmed with quantity and destination market
Factory Supply
314 connector factory supply from Mintel
Mintel manufactures copper wire splice connectors for telecom and selected low voltage applications. For 314 connector requirements, Mintel helps buyers confirm wire range, solid copper wire compatibility, insulation diameter, application conditions, moisture exposure, packaging, and order quantity before quotation. Buyers can also discuss custom OEM requirements when they can provide a sample, drawing, target wire range, application details, and expected order quantity. Custom requirements are reviewed case by case.
- Factory-direct communication for 314 connector inquiries
- Support for B2B buyers, distributors, and qualified OEM projects
- Confirmed single-model 314 connector supply
- Bulk packaging support
- Custom OEM review with sample, drawing, application, and quantity
- RoHS and REACH documentation can be arranged for qualified orders
Related products
Related Mintel connector pages
Telephone Cable Connectors Copper telecom connector range including inline, drop wire, modular, jelly crimp, and related splice connectors.
Jelly Crimp Connectors Gel-filled IDC telecom splice connectors including UY, UY2, UR, UR2, and UB2A.
UY Connector Compact yellow gel-filled 2-wire IDC connector for copper telephone wire repair.
UR Connector Red gel-filled IDC connector for 2-wire or 3-wire repair and tap splice work.
UR2 Connector Red gel-filled IDC connector for 2-wire or 3-wire requirements with larger insulation diameter. FAQ
Buyer questions
What is a 314 connector?
The 314 connector is a 314-type low voltage IDC splice connector used to join 2 or 3 solid copper wires without stripping or twisting. It uses a self-stripping U-contact and silicone grease sealing for moisture resistance.
Is the 314 connector a low voltage splice connector?
Yes. The 314 connector is positioned as a low voltage IDC splice connector. Application suitability must be confirmed by wire size, voltage, environment, moisture exposure, and installation conditions.
What wire range does the 314 connector support?
The 314 connector supports solid copper wire from 0.6-1.25 mm diameter / 22-16 AWG, with maximum insulation outside diameter of 3.08 mm / 0.12".
Can the 314 connector connect stranded wire?
The confirmed Mintel 314 connector data is for solid copper wire. Stranded-wire projects require separate review before quotation.
How many wires can the 314 connector connect?
The 314 connector is used for 2 or 3 wire pigtail splicing, when the wire size and insulation diameter match the connector specification.
Is the 314 connector gel-filled?
No. The 314 connector is not described as gel-filled. It uses silicone grease sealing for moisture resistance. Gel-filled wording is used for jelly crimp connectors such as UY, UY2, UR, and UR2.
Is the 314 connector waterproof?
The 314 connector is silicone grease filled for moisture resistance. Submerged or direct-burial applications require review of the buyer's full protected system before selection.
Does the 314 connector require wire stripping?
No. The 314 connector is self-stripping. Compatible unstripped solid copper wires are inserted into the connector, and the cap is pressed to drive the U-contact into the conductors.
What applications use 314 connectors?
314 connectors can be used in selected low voltage electrical wiring, legacy telecom repair, alarm and sensor wiring, lighting, thermostat wiring, and control wiring when wire size and installation conditions match.
Can the 314 connector be supplied on reel or strip packaging?
Mintel supplies the 314 connector in loose / bulk packaging. Reel or strip packaging is not part of the confirmed 314 supply format.
Can Mintel develop similar low-voltage IDC connector variants?
Custom OEM discussions can be reviewed when buyers provide samples, drawings, target wire range, application, and expected order quantity.
Can RoHS and REACH documents be provided?
RoHS and REACH documentation can be arranged for qualified orders. The buyer should confirm model, quantity, destination market, and document requirements during quotation.
